SOLO M 3.0 FLEX

Art. no: 550525

SOLO M 3.0 FLEX

Art. no: 550525

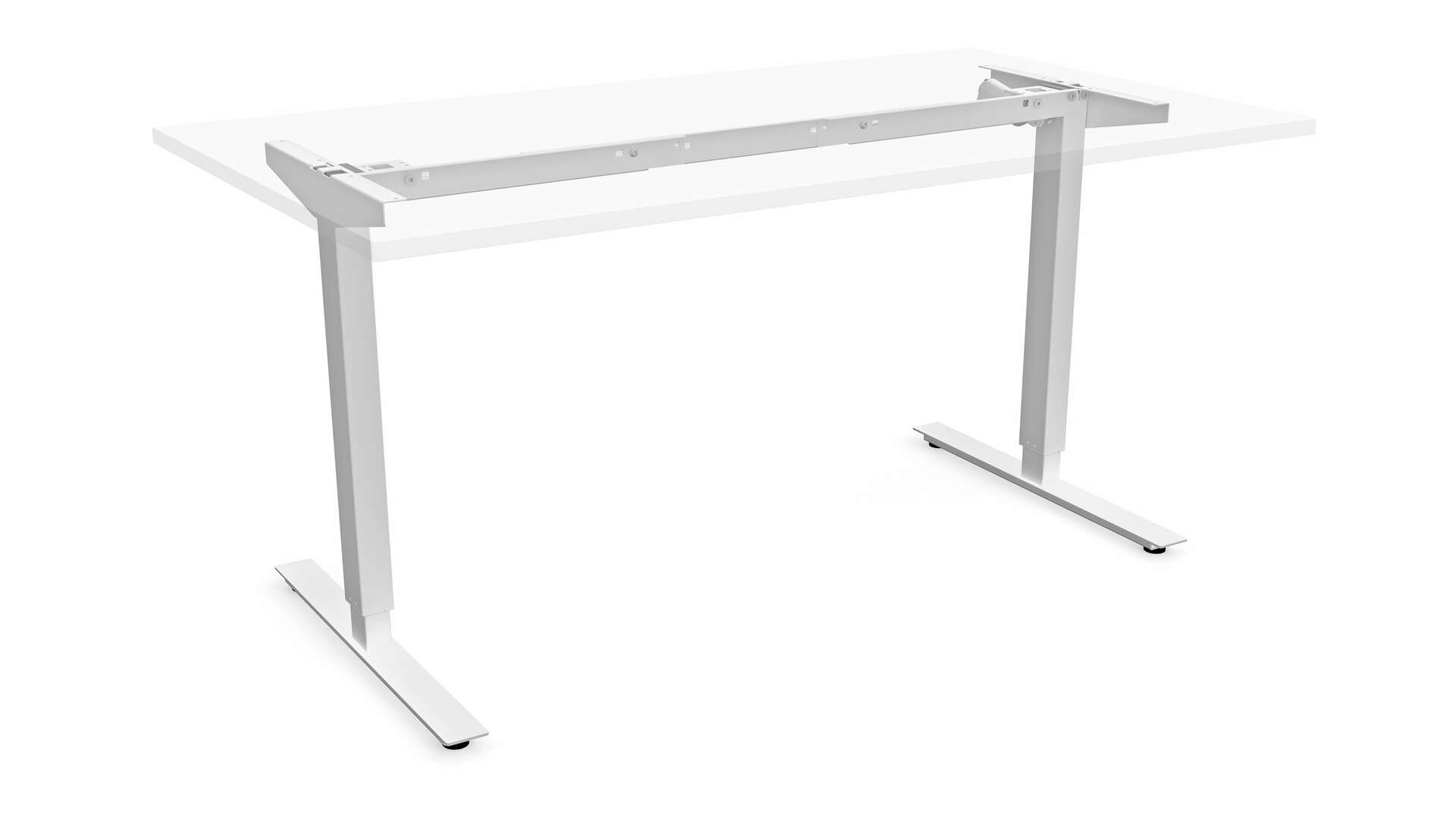

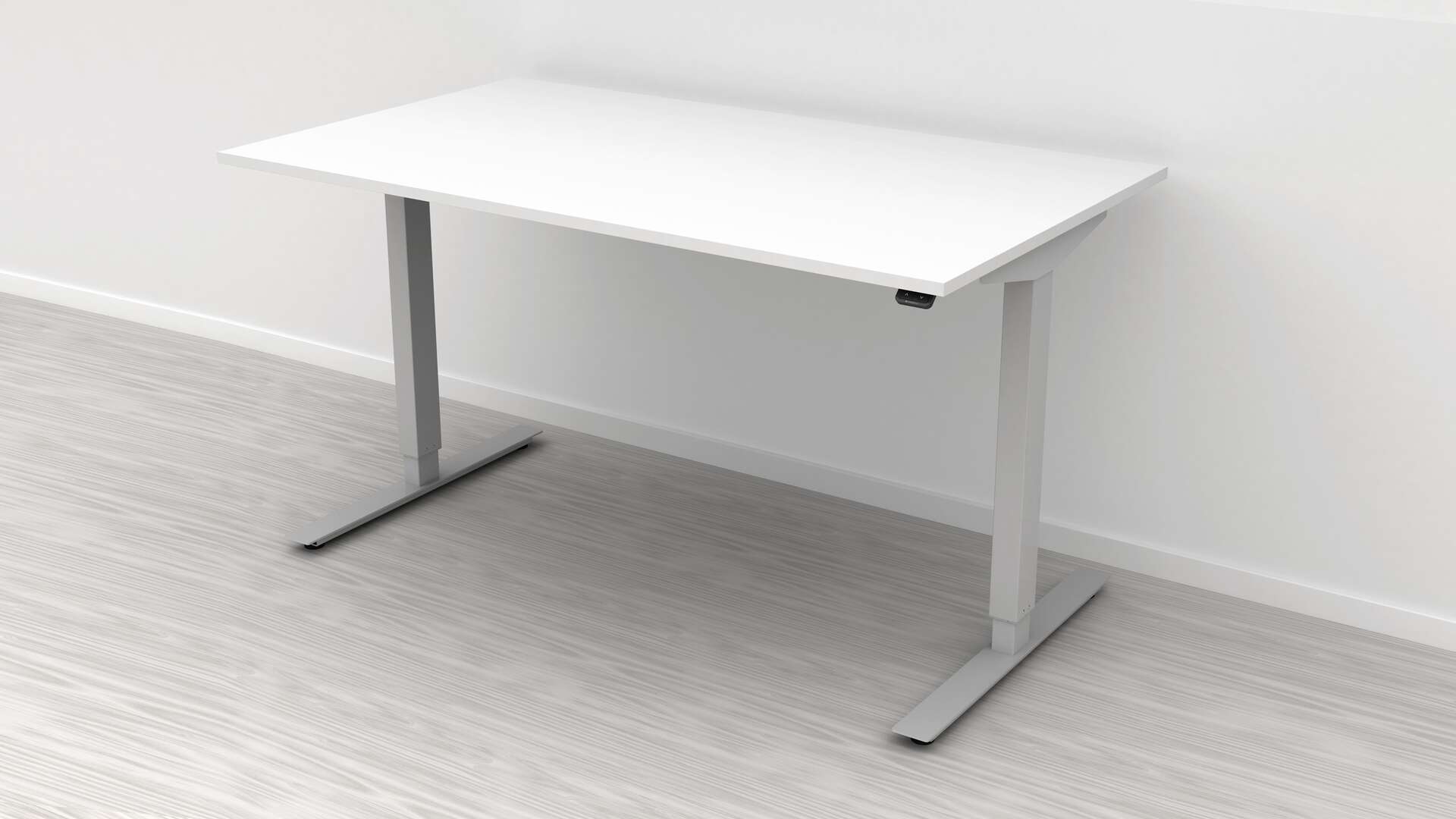

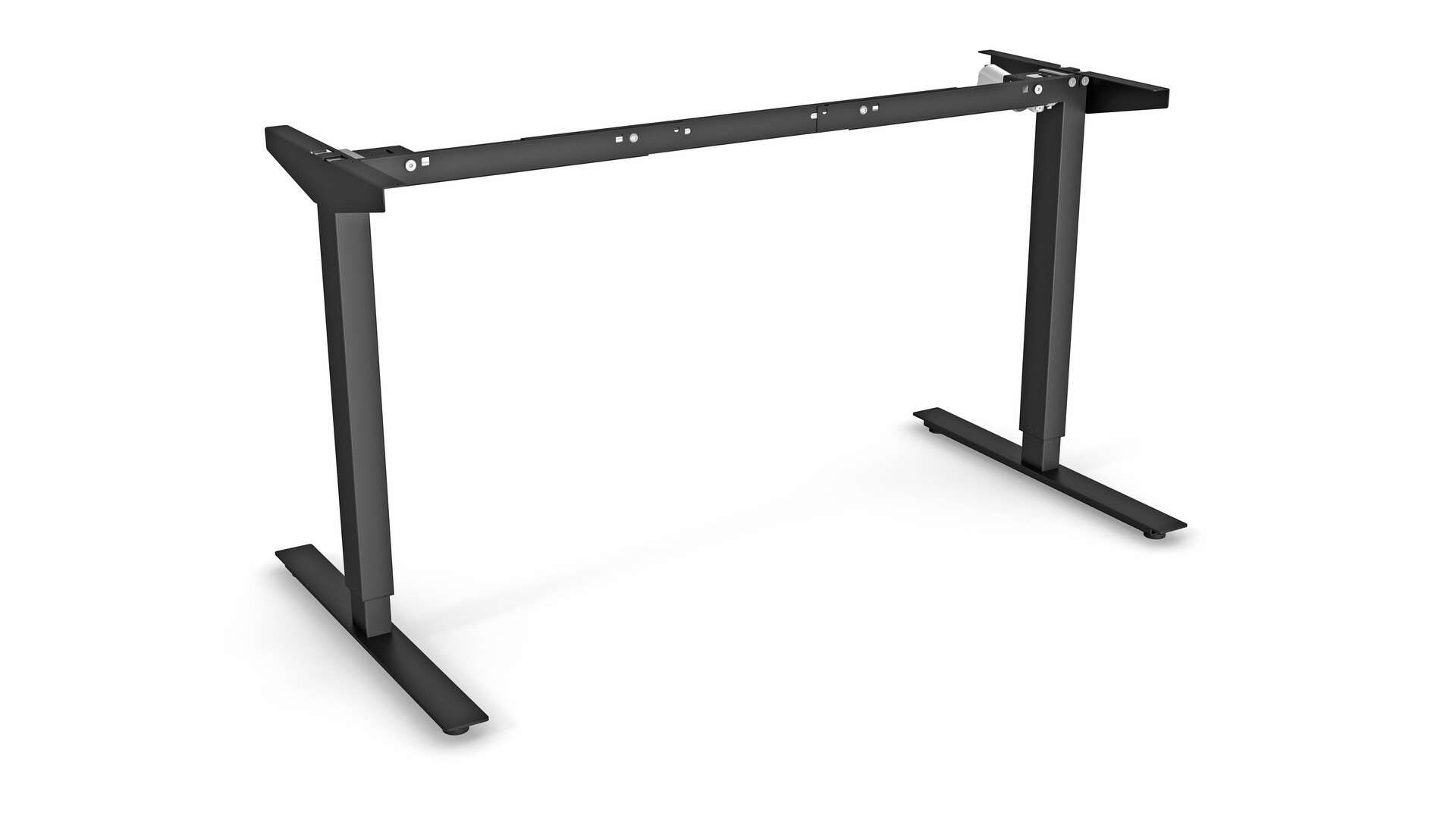

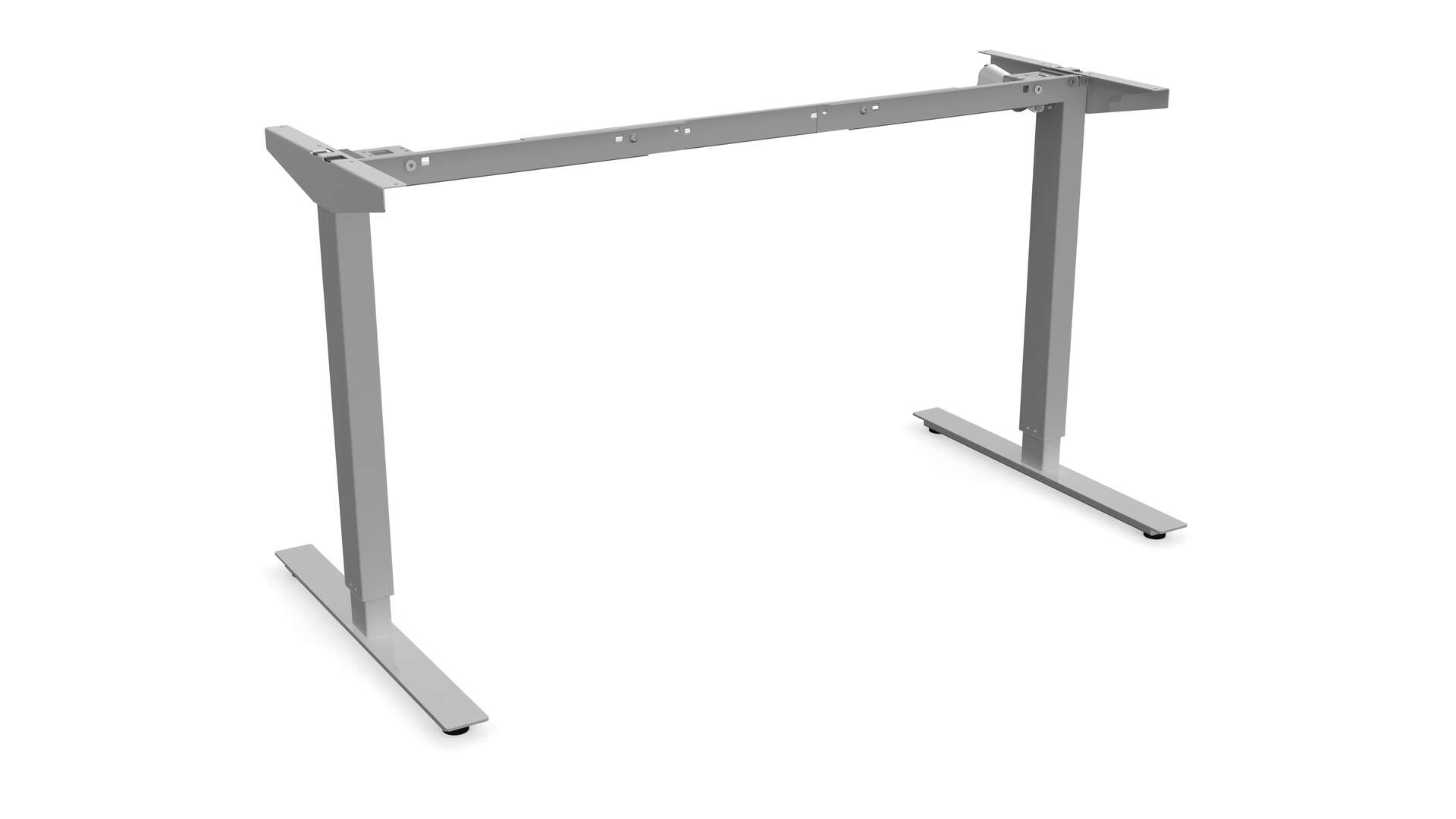

Electric desk frame with one motor. Robust, flexible model for a straight desktop with height-adjustable function, allowing each user to create their optimum work environment.

Stand sections
2D
Colour
Silver Black White
Contact us

An electric Sit & Stand frame for straight desktops, with continuous height adjustment control, makes it easy for the user to create an ergonomic work environment. Robust and flexible design that can be adjusted lengthways ensures a reliable desk that is easily adapted to the desktop of your choice. Free-standing legs allow optimum freedom of movement thanks to unrestricted leg room.

  • Height-adjustable
  • Ergonomic
  • Elegant legs of rectangular design

Tailored solution?

Do your specific requirements mean this product needs special customisation? We are here to help you decide on which solution will suit you best. Contact us on +46 (0)393-363 60.

Specifications

Adjustable height
Yes
Powered by
Electricity
Frame width
1150 mm - 1550 mm
Stroke
480 mm (690 - 1170 mm ±5 mm)
Lift capacity
Max 80 kg
Speed
30 mm/sec
Standby power
0,3 W
Noise level
< 42 dBa
Dimensions tabletops
1160 - 1600 mm x 610 - 800 mm
Duty cycle
10%, 1 min/9 min pause. Max 2 min/18 min
Installation height down position
685 mm
Max bending torque column
Max 150 Nm
Paintwork
Powder coating
Area of use
Indoor environment
Ambient temperature: +5° to +30° C
Humidity: 5 - 85% non condensed
Control unit performance
Low inbuilt height dimensions
Switching technology without any magnetic fields
Inbuilt overload protection
Inbuilt temperature protection
Lifetime
Min 10 000 cycles
